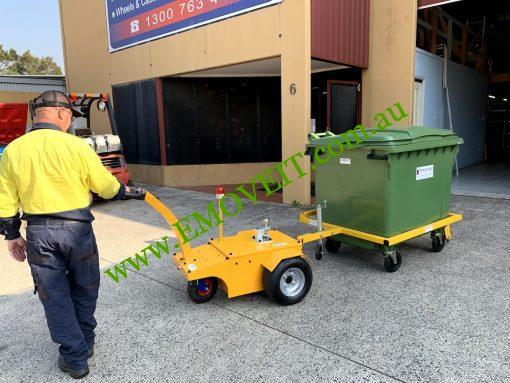

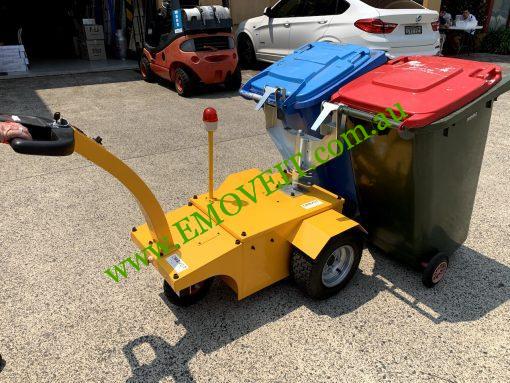

The XL-H3500 is a Heavy Duty Pedestrian operated Tow Tug, with three wheels and tiller steering. It has been designed to easily move Bin Trailers, Trolleys, Caravans and other products on wheels. In safety and comfort, reducing physical stress and improving productivity. Many configurations are possible by choosing among different types of batteries (Standard: AGM or optional: Lead Acid and accessories). It can be fitted with different hooks and attachments to make the standard product adaptable to many uses. Pedestrian Tow Tug XL-H3500 (PDF) Gallery XL-H3500-BM Tug w Two x 240l bin attachment XL-H3500-BM Tug w Two x 240l bin attachment XL-H3500-BM Tug w Towing Frame XL-H3500-BM Tug w Towing Frame XL-H3500-BM Tug w Towing Frame Specifications Model # XL-H3500-BM Ramp Tug Driving Motor High Torque AC Motor 36V/ 1500W (c/w Normal / Low speed) Traction Capacity 3500 kg rated on level ground Top platform Load Capacity 400 kg (for Ballast) Maximum Speed 5 km/h Curtis Controller 36V/200Ah AGM, maintenance free Battery 12V/55Ah x 3 External Charger 36V/8A, for standard 10 amp wall plug Tyre Pneumatic, High Traction Rubber Tyres OA Dimensions 1260 x 670 x 960 mm Weight 262 kg c/w Batteries Standard Accessories Tow Point, Draw Bar Pin and flashing light Many configurations are possible by choosing among different types of coupling accessories Note : AGM, no maintenance batteries are standard, Optional Pure Lead Batteries POA
