Instek GPT-12003: Comprehensive Electrical Safety Analyzer for AC, DC, IR, Continuity Testing

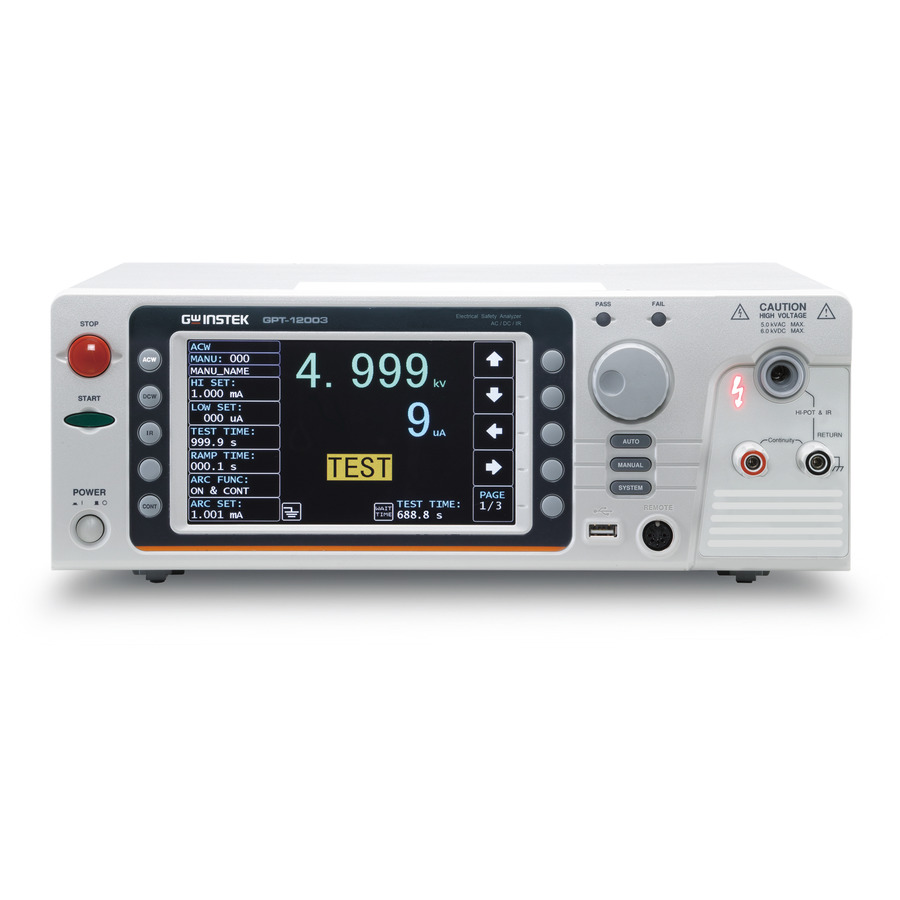

Features and Specifications: Instek GPT-12003 Electrical Safety Analyzer, 200VA, AC, DC, IR, Continuity, GPT-12000 Series Product Overview: The Instek GPT-12003 Electrical Safety Analyzer is a comprehensive and versatile instrument designed to perform a wide range of electrical safety tests. With its advanced features and high accuracy, it is ideal for testing electrical equipment, appliances, and components to ensure compliance with safety standards. Features: AC/DC Voltage Measurement: Measures AC and DC voltage up to 600V. Insulation Resistance Measurement: Tests insulation resistance up to 1000MΩ. Continuity Test: Checks continuity with a test current of 200mA. Ground Bond Test: Measures ground bond resistance up to 0.1Ω. Leakage Current Measurement: Measures leakage current up to 20mA. Dielectric Strength Test: Tests dielectric strength up to 5kV. Programmable Test Sequences: Allows users to create and store custom test sequences for automated testing. Data Logging and Analysis: Records and analyzes test results for easy reporting and documentation. Safety Features: Complies with IEC 61010-1 and IEC 61010-2-030 safety standards. Specifications: AC Voltage Measurement: 0 to 600V DC Voltage Measurement: 0 to 600V Insulation Resistance Measurement: 0 to 1000MΩ Continuity Test Current: 200mA Ground Bond Resistance Measurement: 0 to 0.1Ω Leakage Current Measurement: 0 to 20mA Dielectric Strength Test Voltage: 0 to 5kV Power Output: 200VA What’s in the Box: Instek GPT-12003 Electrical Safety Analyzer Test leads Calibration certificate User manual Benefits: Comprehensive Testing: Performs a wide range of electrical safety tests, eliminating the need for multiple instruments. High Accuracy: Provides accurate and reliable test results, ensuring compliance with safety standards. Automated Testing: Programmable test sequences streamline testing and reduce operator error. Data Management: Records and analyzes test results for easy reporting and documentation. Safety Compliance: Complies with industry safety standards, ensuring the safety of operators and equipment. Value: The Instek GPT-12003 Electrical Safety Analyzer offers exceptional value by providing a comprehensive and accurate testing solution for electrical safety compliance. Its advanced features, high accuracy, and ease of use make it an indispensable tool for electrical engineers, safety professionals, and manufacturers.
