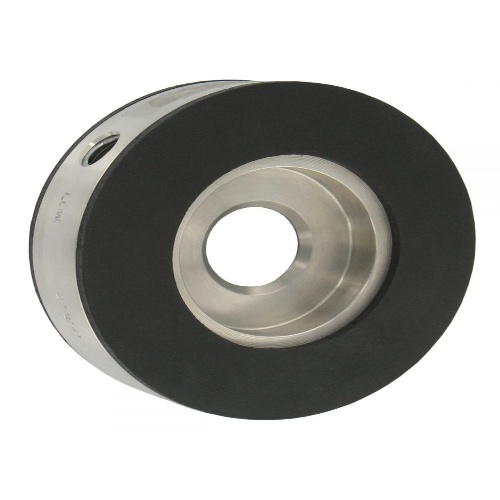

Dwyer OP-O-3 Orifice Plate Flowmeter is a reliable and accurate solution for measuring the flow of compatible liquids and gases. With a temperature range of -50 to 200°F (-45 to 93°C) and an accuracy of ±0.6% full scale flow, this flowmeter is suitable for a variety of applications. Its wetted material is constructed of 304 SS and Buna-N gaskets, ensuring durability. The flowmeter has a pressure limit of 150 psi and a process connection of 1/4" female NPT. It is available in line sizes ranging from 1/2" to 24", with installation using a standard flange 125#/150# rating. With a head loss calculation of 1 – Beta ratio², it provides accurate results while minimizing pressure drop. Additionally, it complies with general pipe requirements, requiring 10 diameter upstream and 5 diameter downstream space. Specifications (Instrument-Sensor) Application Liquid (Instrument-Sensor) Application Gas Component Flow Meter (Instrument-Sensor) Type Orifice Plate (Instrument-Sensor) Measurement Accuracy 0.60% (Instrument-Sensor) Temperature Range -50 – 200°F/-45 – 93°C Manufacturer Dwyer Instruments Features Mounted with standard flanges with no need of specialty flanges Reduced installation costs with simple installation by slipping the unit between standard flanges Easy access with corner type metering taps Long operation life with corrosion free material Stainless steel wetted parts assures long term reliability and accuracy Proven through a wide range of applications for energy efficiency Be the first to review “Dwyer OP-O-3 Orifice Plate Flowmeter” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
